Veeder-Root ATG Communications Specifics

Veeder-Root ATG Communications Specifics

Generally use default serial settings of 9600, 7 , ODD, 1

Veeder-Root Models:
TLS-300
-  Does not support Line Leak
-  Only has 1 functioning Serial port (labeled Direct)
-  Has been known to have that serial port blown since this model has not been generally sold for 10 years
-  Has 1 expansion slot available (left-hand side of console, connections out the bottom of console)
-  Can accept a serial card or fax/modem
-  Needs a special mounting bracket on the serial card (different than TLS-350)
- Serial Cable Needed is D25M to D25M Straight

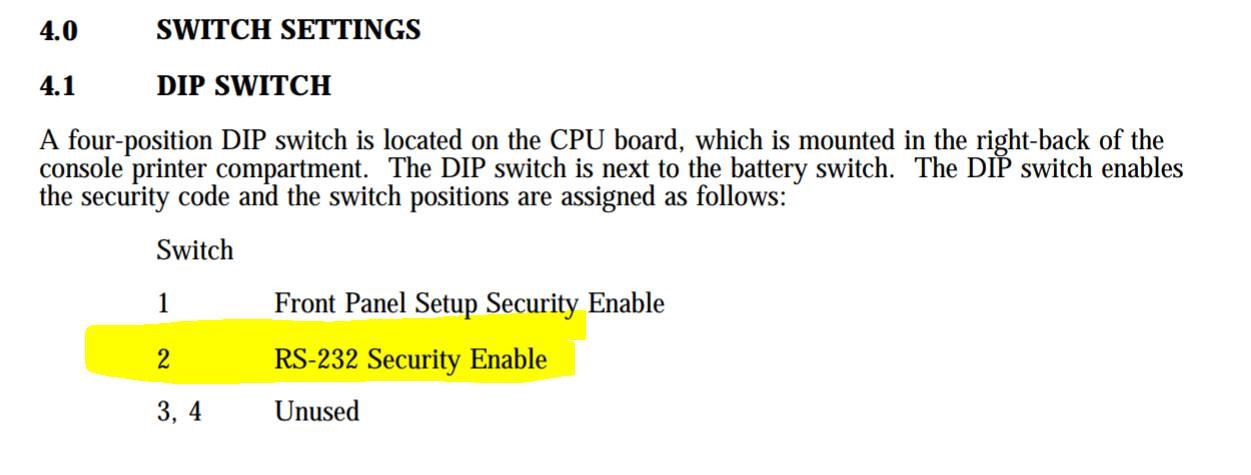

DIP Switch 2 MUST be on to get serial communications to work.





TLS-350
-  Has card cage that will accept expansion 4 cards
-  We need either a serial card or a network adapter
-  Network adapter requires an ECPU2 motherboard.  Came out about 8-10 years ago, but most do not have them.
- Serial Cable Needed is D25M to D25M Straight
- DIP Switch 1 - Toggle to get to System Setup (Simplicity?)
-  USB to RJ45 and a RJ45 to DB25 Adapter (SC 1x10)

TLS-450
-  Most of these have been replaced since they had issues
-  Essentially a touch screen version of the TLS-350, but not reliable
-  Comes with 2 serial ports
-  Serial Cable needed is D25M to D9M Straight
-  USB to DB9 and a M2F DB9 Mini Null Modem Adapter (SC 1x10)

TLS-450 Plus
-  latest version
-  Much more reliable than TLS-450
-  Generally comes with network adapter
-  Can add a serial card or can have 2 already
-  Serial Cable needed is D25M to D9M Straight
-  USB to DB9 and a M2F DB9 Mini Null Modem Adapter (SC 1x10)
